Before you go further
This is not a home center “bargain” product. These are extremely high quality custom manufactured screening panels and walls, and they are priced accordingly.
Budget a minimum of $100.00 to $150.00 per running foot if you are considering this system. Your actual cost may be far higher - or lower, based on final layout, sizes and options ordered.
01Installed

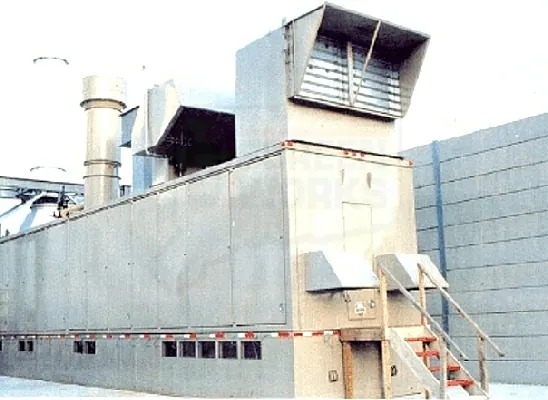

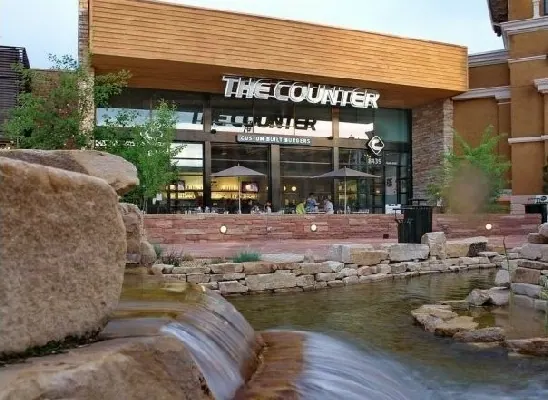

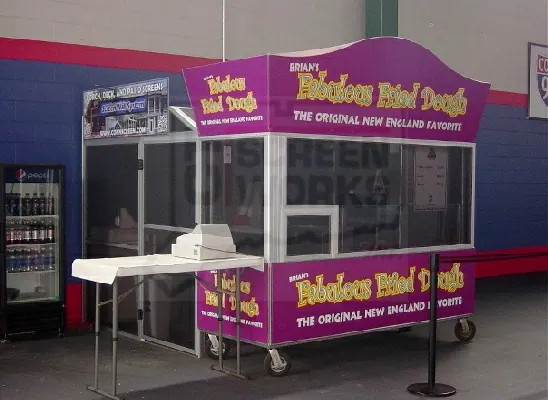

Residential / Commercial / Industrial / Specialty
02Standard layouts
Seven layouts. Or draw your own.
Since all panels are built to order, you are free to move or add divider bars to best suit your needs, or design a fully custom layout. Review the Standard Specifications & Submittal Package for specifications and limitations.

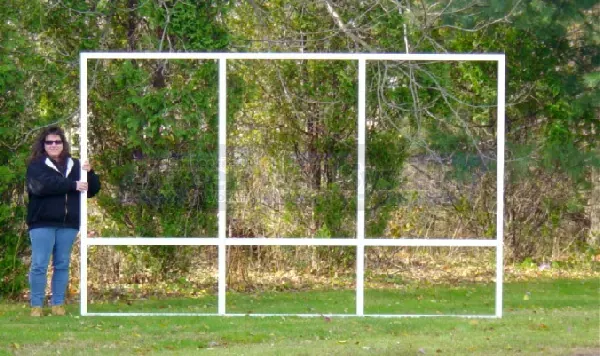

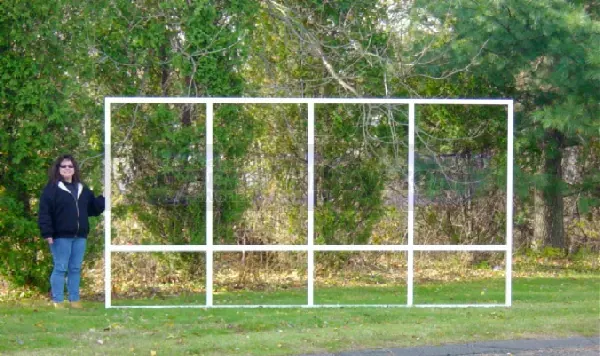

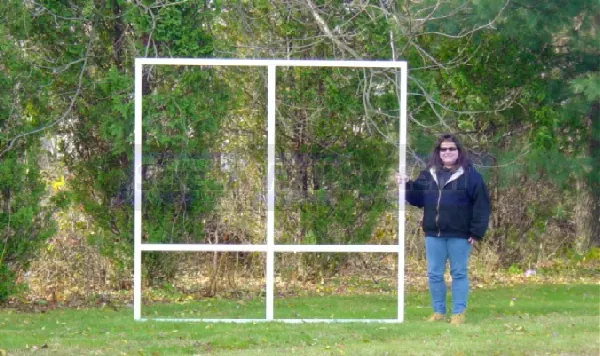

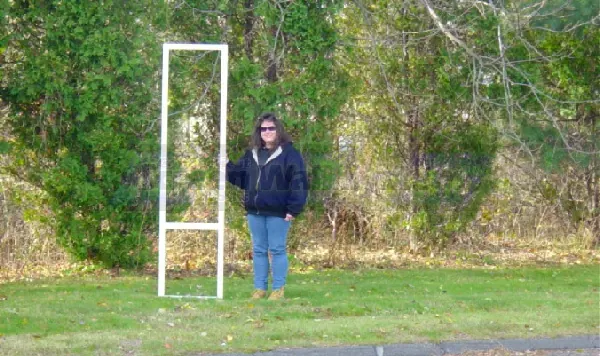

Screen Walls
A “Screen Wall” is simply a larger master frame assembly with a standard or custom layout repeated within it. Since all products are built to order, almost limitless design freedom is available. The ordering format is Layout # - repeats.
03Quality
Virtually unbreakable.
Connecticut Screen Works Screen Wall System® panels are virtually unbreakable. We conduct laboratory (controlled) and in-house (real world) testing on our panels.
- Wind load
- 135 MPH
- Static load, frame
- 400 lb

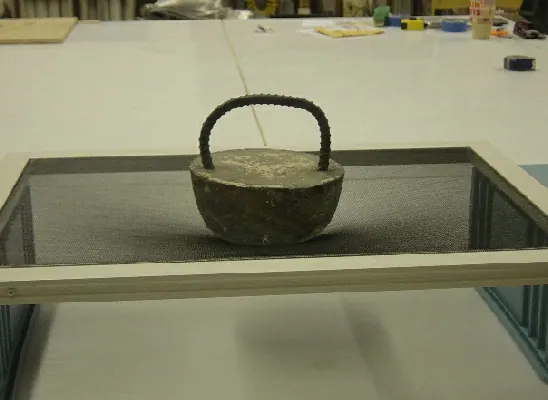

- Static load, screen
- 44 lb
04Door slabs
Unhung slab doors.
Any Connecticut Screen Works Screen Wall System® panel can be used as a door slab. We offer a “Standard” slab.
We recommend that you fully frame out the door jamb and hang the slab independent of any screen panel or wall. Since all slabs are custom manufactured to order, like every other panel and wall, you must be able to specify the exact measurement for manufacture.
05Screen material
Pool & Patio as standard.
Standard installation
Panels and walls are automatically screened "Standard" with our super strong polyester Pool & Patio screen material. It is pet resistant, ultra durable, and has an expected life of 15 to 20 years under normal conditions.
Upgraded installation
Other screen options are available, as is upgraded screen installation. Which installation is used may be dictated by the manufacture sizes ordered.
06Finishes
Four available, one limited, everything else on request.
White
Commercial powder coat
Tiger Drylac Series 49 / 11340
Bronze
Commercial powder coat
Tiger Drylac Series 38 / 60060
Black
Commercial powder coat
Coating reference confirmed at quotation

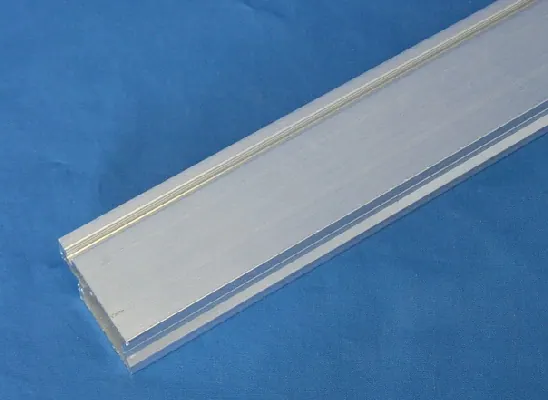

Mill
Unfinished aluminium
Supplied "as is" from the extruder
Clear anodized
LIMITEDAnodized aluminium
Limited availability, confirm at quotation
Clear anodized is subject to limited availability. Confirm the finish and its lead time when you request a quote.
Custom, per order
- Full RAL spectrum powder coating
- Colour match Kynar paint, 2 or 3 coat
- Class I and Class II anodizing
Mill (unfinished aluminium) is supplied “as is” from the extruder and should be fully and properly prepared prior to any finish application.

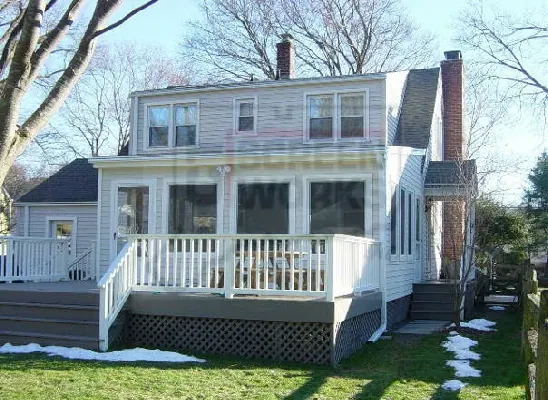

07Off-season inserts
Off-season inserts

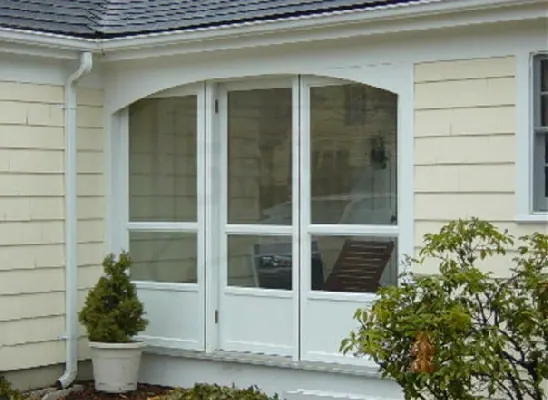

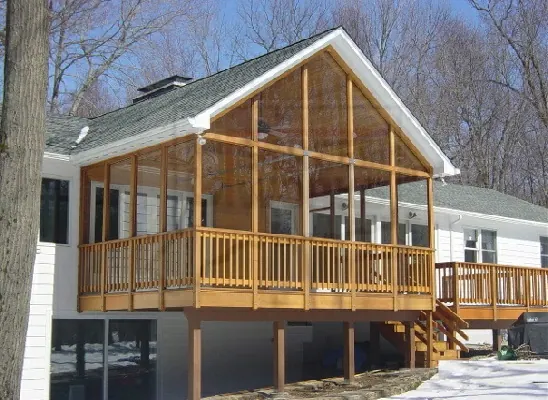

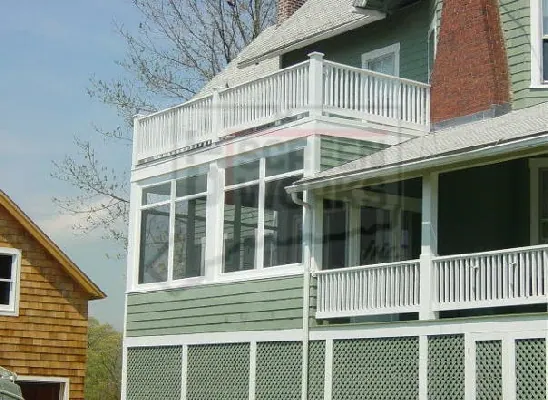

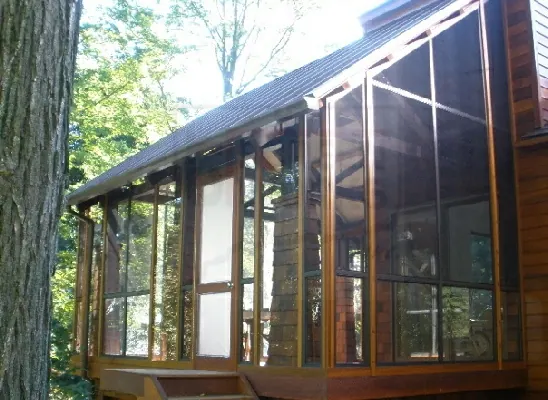

Screen Wall System® panels and walls will accept winterization dead lite inserts. Advance planning is required, since panels must be sized within the limitations of the inserts. Retainer hardware can be installed during manufacture or later, after installation.
We offer commercial extruded c-sash wrapped plexiglass or tempered glass dead lites. Aftermarket dead lites can be used, but we highly recommend only commercial 3/8" extruded c-sash dead lite panels with pile weather seal, available from any commercial glass shop.
08Planning & ordering
Decide how you'll install it before you measure anything.
All panels and walls are custom manufactured for your order. Items are not held in stock, nor are there any “standard” sizes in inventory. You will need to submit full specifications per our order standards.
Additionally, you must first determine how you plan to install your panels or walls before you can determine any manufacture sizes. Review the installation methods and see which would best suit your requirements, each has different measuring and sizing instructions.
Due to the high variation in options and designs, all orders must be quoted. Our staff is available for guidance, technical assistance, project review and general questions.
